Unlock possibilities for demanding applications – with actuated 5K

The LRS-PixelForge Series gives innovators and developers a professional starting point for developing and refining their additive manufacturing processes. With an industrial-grade interface, liquid cooling, and precision light control, it’s built for those ready to move from concept to implementation — building today what will scale tomorrow.

Recommended use

Static systems

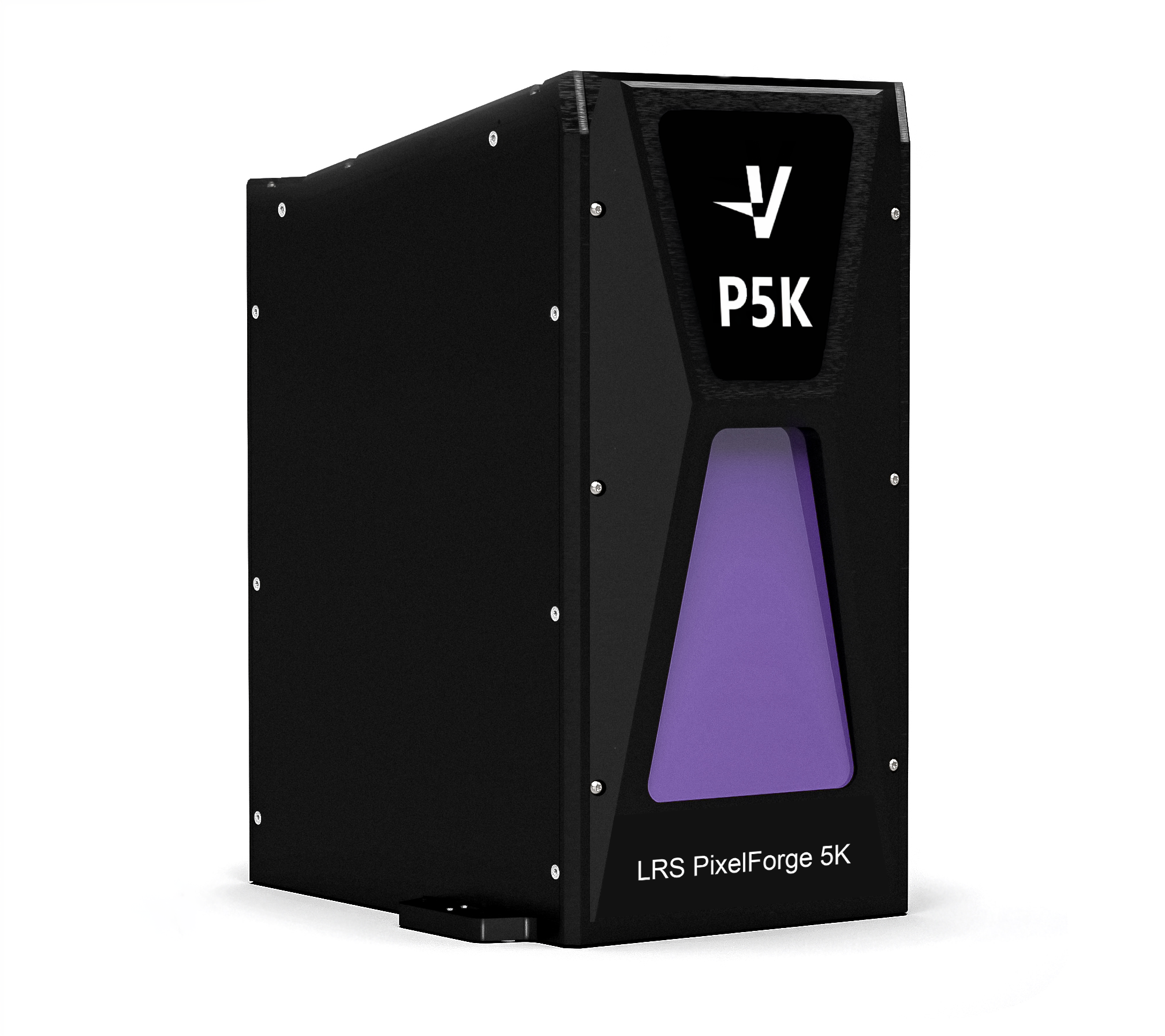

LRS-PIXELFORGE 5K

The LRS-PixelForge 5K gives you even more addressable pixels compared with the standard version, and more productivity. With over 16 million addressable pixels (5433 x 3057), you can create larger and finer prints, faster.

Cost-concerned? The LRS-PixelForge is remarkably cost efficient, with a proprietary LED module and free LAMA software that lets you use Visitech’s proprietary FPSC mode to customize power and exposure settings for the four subframes. The LRS-PixelForge is the ultimate development subsystem, paving the way for production systems.

The LAMA software eliminates downturns and compromises from USB and video interfacing, such as HDMI or DisplayPort, providing easy and seamless integration with machine control software.

LAMA platform benefits

Transfer your work to the next tier-level systems, thanks to LAMA. Being the world’s smallest WQXGA DLP light engine for AM is not the only benefit of the LRS-PixelForge Series. The LAMA software platform, on which it is built, offers several advantages—including the ability to copy scripts and settings to other LAMA-compatible systems. The LRS-PixelForge Series comes with an encapsulated optical core and meets the demands of the additive manufacturing world.

Further cross-platform features include standardization on industrial-grade Ethernet for communication and data transfer, as well as liquid cooling as the preferred thermal control for maximizing power and performance.

Optimal performance

Visitech’s proprietary Bifrost S LED light source features advanced power output control to maintain optimal performance. The LRS-PixelForge Series comes with the AM-optimized and fully integrated LAMA Standard software base.

Full pixel sequence control (FPSC mode) explained (simplified view)

The advanced LB6600 controller of the LRS-PixelForge projector provides complete control of the data content in the projected subframes, yielding valuable advantages:

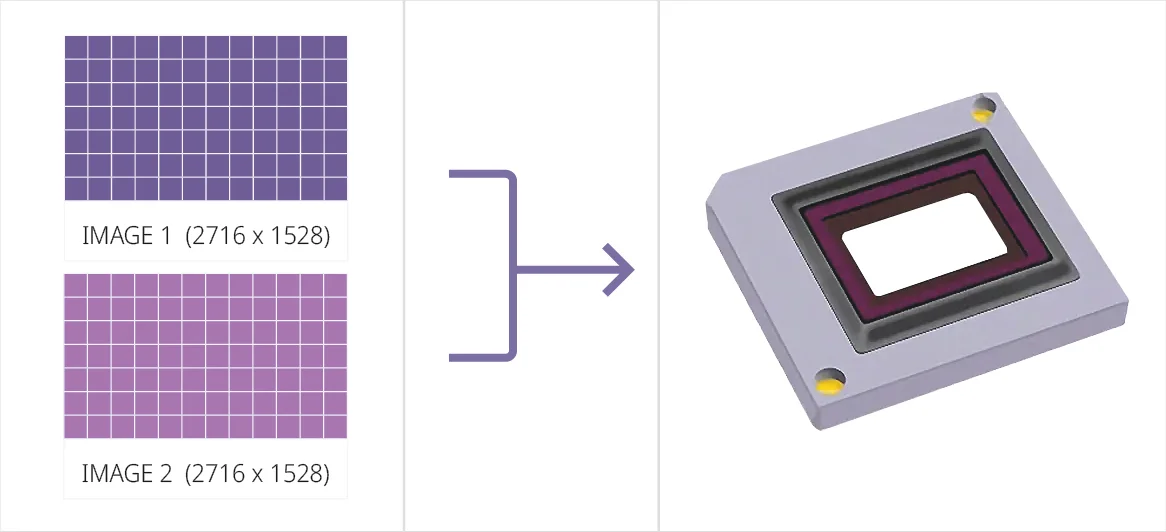

No re-sampling errors

The controller uses the exact native resolution of the DMD, which allows pixel-pure exposures. This differs from systems using the original DMD reference controller, which was designed for UHD video inputs but requires data re-sampling. Re-sampling causes unwanted pixel errors due to a mismatch between the controller and the DMD.

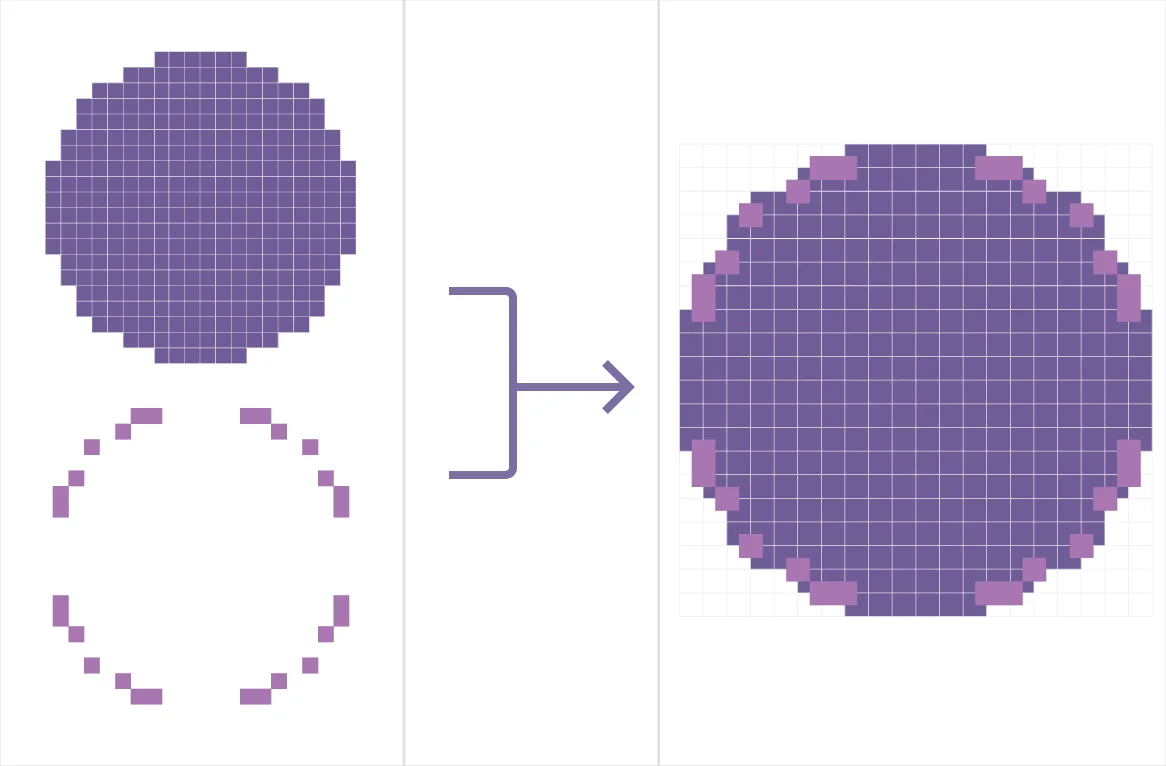

Complete control of the optical actuator

You can control actuator positions timewise on every layer and apply an image offset of 1/2 pixel to generate a better resolution of outer contours in each layer, resulting in a better surface finish of the printed objects.

Fleixble architecture

Flexible architecture for simple and easy integration with your machine design.
