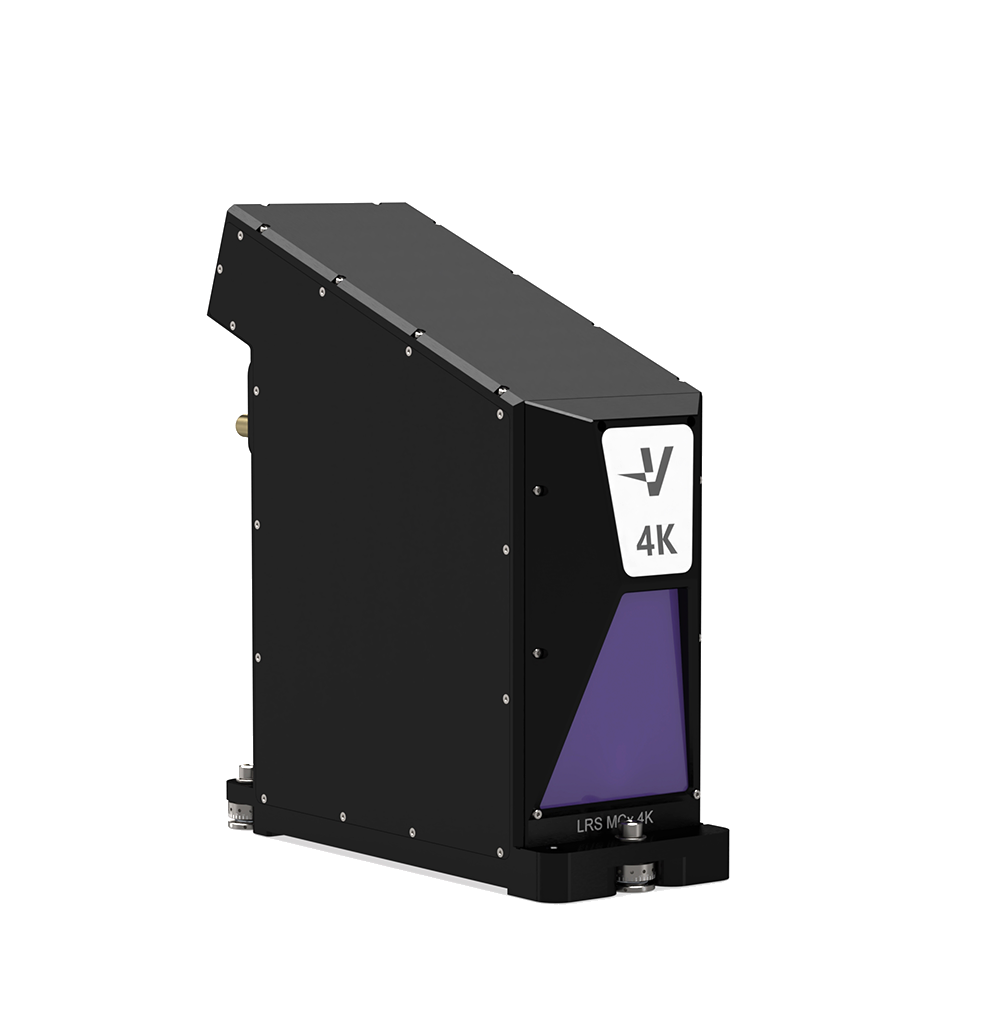

LUXBEAM® LRS-MCX 4K
An industrial productivity
revolution in true 4K
The first light engine with true native 4K resolution for scrolling additive manufacturing — nearly nine million pixels, Gen 5 LED and the proprietary Bifrost™ source.
- True-4K pixels
- 8.85 MP
- UV output · 405 nm
- ≤ 11 W
- Power uniformity
- 99%
- Shared platform
- NEOS

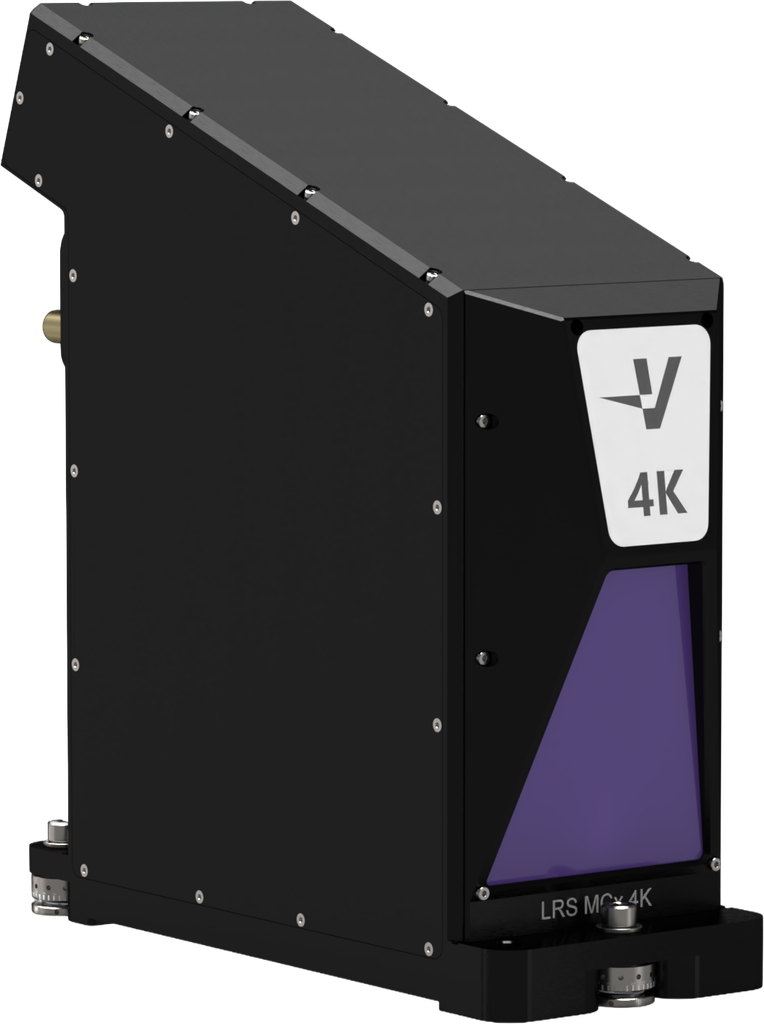

LUXBEAM® LRS-MCX 4K
Built for high-volume additive manufacturing
Scrollable and stackable: build multihead scrolling systems or a high-power static configuration on the shared NEOS platform. Nine million native pixels and unprecedented UV power output, driven by the Gen-5 Bifrost™ source.
Recommended use
- Multihead scrolling systems
- High-power static configuration
- Scrolling additive manufacturing
What sets it apart
-
True native 4K
A 0.98″ TRUE 4K DMD resolves 4096 × 2160 — nearly nine million native pixels in a single scrolling exposure, with optional SPX subpixelation.
-
Unprecedented UV power
Up to 11 W at 405 nm (10 W at 385 nm) from the Gen-5 Bifrost™ source, held to 99% uniformity after software correction.
-
On the NEOS platform
Shares optics, the Bifrost driver and LAMA™ software across the family — integrate once, then scale across products and branches.
Specifications
LRS-MCX 4K — full specification
Properties
Imaging
- DMD Type
- 0,98” TRUE 4K
- Resolution
- 4096 × 2160 px · 4K
- Pixel pitch
- 1.4–100 µm
- Image size
- 5.7–410 × 3–216 mm
- Image plane
- 17–88474 mm²
- Operation Mode
- Native pixel mode, scrolling; Subpixelation SPX mode (requires LAMA Pro)
- Power Uniformity
- 99% after Software Correction
Light & power
- Projector Output Power
- Up to 11 W (405 nm), 10 W (385 nm)
- Wavelength
- 385–405 nm
- LED Options
- 405 nm / 385 nm
- LED Driver
- Bifrost LRS; Constant flux with Optical Feedback
- Power consumption
- Max 300 W
- Power supply
- 48 V DC
Mechanical & thermal
- Dimensions w/o lens
- 274 mm (H) x 98 mm (W) x 240 mm (L)
- Total weight w/o PSU
- 5 kg (w/o lens)
- Cooling system
- Liquid Cooling
- Frame Sync
- External Frame Synchronization
Platform & software
- Software
- LAMA Standard (included)
- Image Data
- Pattern Streaming with LAMA
- Communication
- Ethernet
- UV / IR Safety
- LED Safety Switch enable/disable
Additional specs
- Features
- NEOS, PPC, LAMA STD, SSw
Lens options
| PL LRS 0.3 HC 405nm | 16mm | 268mm | 1.9µm | 4.9 × 3mm² |
|---|---|---|---|---|
| PL LRS 0.5 HC | 50mm | 268mm | 2.7µm | 11.1 × 5.8mm² |
| PL LRS 1.0 HC | 71mm | 268mm | 5.4µm | 22.1 × 11.7mm² |
| PL LRS 2.0 HC | 90mm | 269mm | 10.8µm | 44.2 × 23.3mm² |
| PL LRS 4K 4.6 | 123mm | 282mm | 17.7µm | 102.4 × 54mm² |
| PL LRS 3.6 | 148mm | 239mm | 28µm | 71.7 × 44.8mm² |
| PL LRS 4.6 | 178mm | 279mm | 35µm | 89.6 × 56mm² |
| PL LRS 4K 9.3 | 319mm | 494mm | 35.4µm | 204.8 × 108mm² |
| PL LRS 4K 13.9 | 470mm | 634mm | 53µm | 307.2 × 162mm² |
| PL LRS 8.3 | 375mm | 463mm | 63µm | 161.3 × 100.8mm² |
| PL LRS 9.9 | 493mm | 263mm | 75µm | 192 × 120mm² |
| PL LRS 11.7 | 575mm | 667mm | 90µm | 230.4 × 144mm² |
| PL LRS 17.2 | 884mm | 975mm | 130µm | 332.8 × 208mm² |
Lens data for the LRS-MCX UV series. Working and mounting distances are nominal; consult the datasheet for tolerances under your configuration.
What is the LRS-MCX 4K?
A TRUE 4K DLP light engine for additive manufacturing — a 0.98″ DMD resolving 4096 × 2160 in a single scrolling exposure, built on the shared NEOS platform. You integrate it into your own machine.
Scrolling or static-stacked?
Both. The LRS-MCX 4K drives multihead scrolling systems for large build areas, or a high-power static configuration where ultimate precision matters — same engine, same platform.
How much UV power does it deliver?
Up to 11 W at 405 nm (10 W at 385 nm) from the Gen-5 Bifrost™ source, held to 99% uniformity after software correction.
Which lens should I choose?
It depends on your pixel pitch and build area — the lens table above lists working distance, mounting distance, pixel pitch and native image size for the full LRS-MCX UV series.
Subsystem or complete tool?
A subsystem. Visitech delivers the light engine — optics, DMD, the Bifrost™ driver and LAMA™ software — which you mount and control in your own platform via Ethernet.
