LUXBEAM® LRS-MCx WQ
Maximize your productivity
The LRS-MCx WQ is built for scaling DLP 3D printing in professional AM machines — WQXGA resolution from the LUXBEAM® LB9500 controller, and an API that integrates with any motion controller.
- WQXGA pixels
- 4.1 MP
- UV output · 405 nm
- ≤ 10 W
- Power uniformity
- 99%
- Shared platform
- NEOS

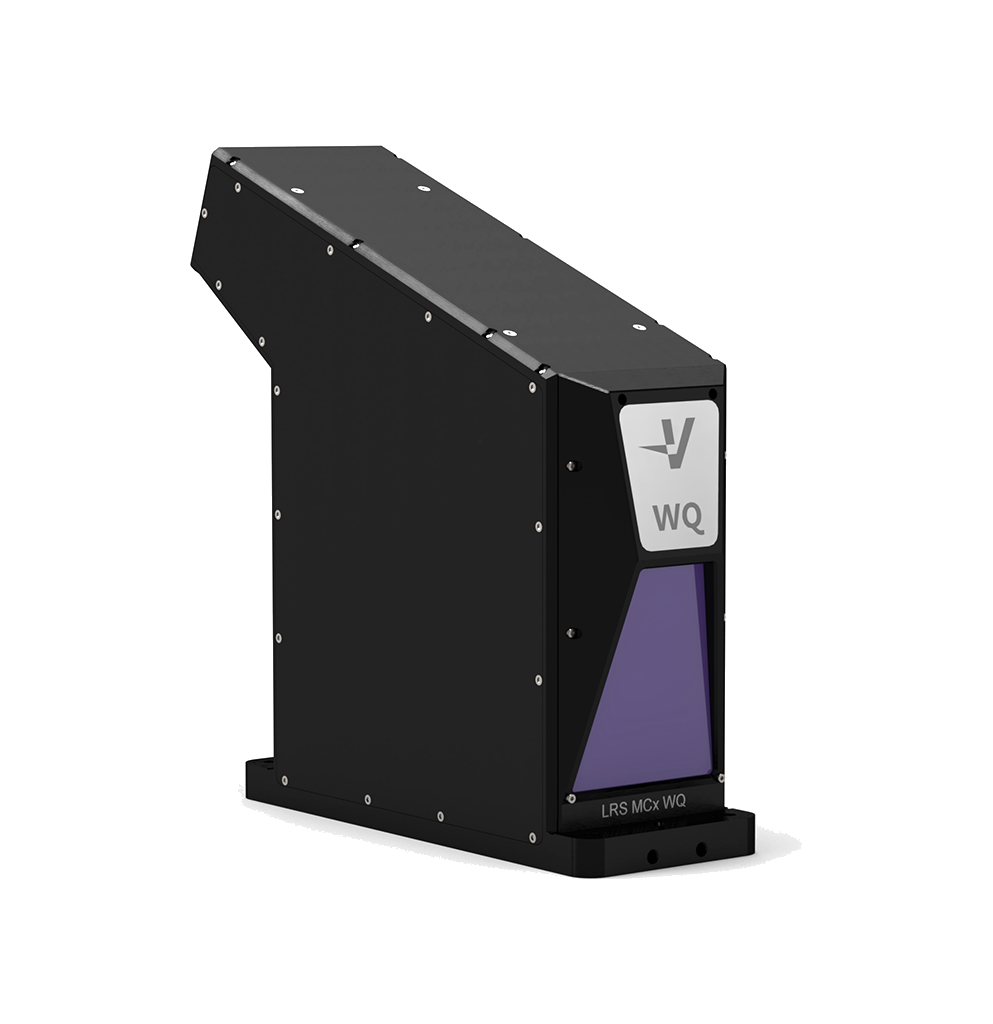

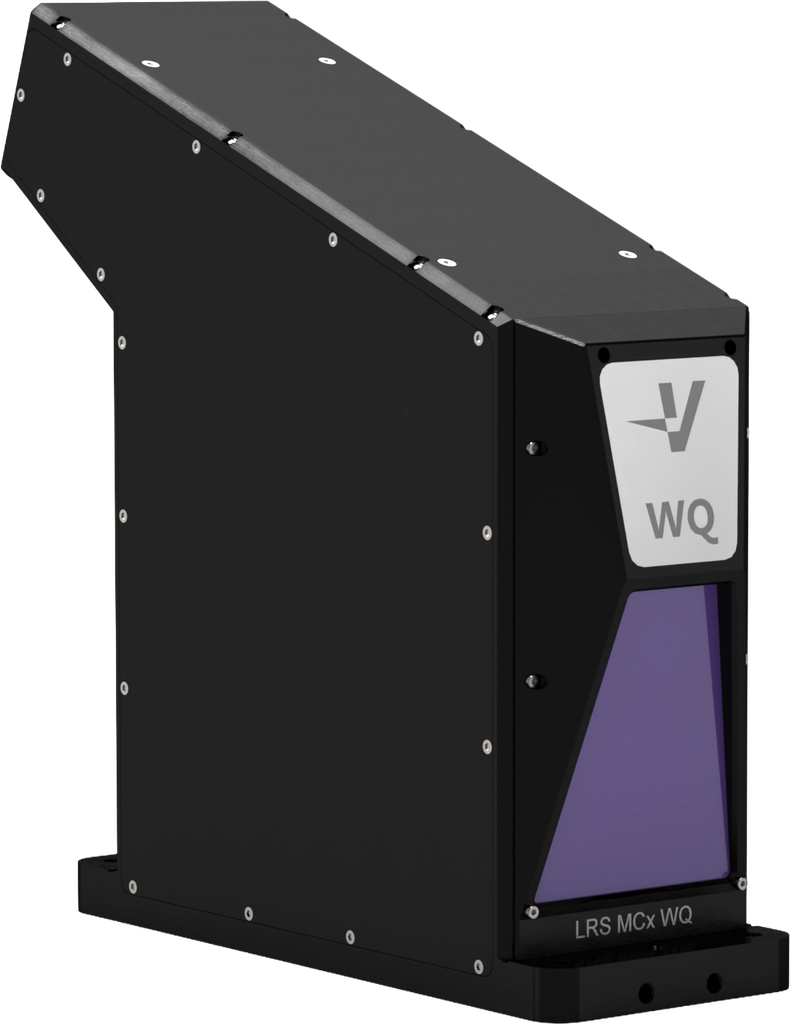

LUXBEAM® LRS-MCx WQ
Achieve maximum productivity from a single subsystem by stacking and scrolling
The LRS-MCx UV Series drives the performance of UV-SLA light engines. A narrow footprint lets modules stack with stitched images, and in a scrolling dynamic configuration that gives the highest throughput from a single-pass linear motion system.
Recommended use
- Scrolling multihead UV
- Micro 3D print
What sets it apart
-
WQXGA, scrolling
A DLP9000X/XUV 0.9″ DMD resolves 2560 × 1600 in native pixel mode under the LUXBEAM® LB9500 controller, with optional SPX subpixelation on LAMA Pro.
-
Up to 10 W of UV
460, 405, 385 or 365 nm LED options from the Bifrost LRS driver — constant flux with optical feedback, held to 99% uniformity after software correction.
-
Stackable on NEOS
Modules stack on a linear stage with alignment features for pixel-precise stitching; the shared NEOS platform brings liquid cooling, industrial Ethernet and LAMA™ Standard.
Specifications
LRS-MCx WQ — full specification
Properties
Imaging
- DMD Type
- DLP9000X/XUV 0.9” WQXGA
- Resolution
- 2650 × 1600 px · WQXGA
- Pixel pitch
- 1.9–130 µm
- Image size
- 4.8–335 × 3–209.4 mm
- Image plane
- 14–70149 mm²
- Operation Mode
- Native pixel mode, scrolling; Subpixelation SPX mode (requires LAMA Pro)
- Power Uniformity
- 99% after Software Correction
Light & power
- Projector Output Power
- Up to 10 W (460 / 405 nm), 9 W (385 nm), 7.5 W (365 nm)
- Wavelength
- 365–460 nm
- LED Options
- 460 nm / 405 nm / 385 nm / 365 nm
- LED Driver
- Bifrost LRS; Constant flux with Optical Feedback
- Power consumption
- Max 300 W
- Power supply
- 48 V DC
Mechanical & thermal
- Dimensions w/o lens
- 270 mm (H) x 92 mm (W) x 240 mm (L)
- Total weight w/o PSU
- 5 kg (w/o lens)
- Cooling system
- Liquid Cooling
- Frame Sync
- External Frame Synchronization
Platform & software
- Software
- LAMA Standard (included)
- Image Data
- Pattern Streaming with LAMA
- Communication
- Ethernet
- UV / IR Safety
- LED Safety Switch enable/disable
Additional specs
- Features
- NEOS, PPC, LAMA STD, SSw
Lens options
| PL LRS 0.3 HC 405nm | 16mm | 268mm | 1.9µm | 4.9 × 3mm² |
|---|---|---|---|---|
| PL LRS 0.5 HC | 50mm | 268mm | 3.8µm | 9.7 × 6.1mm² |
| PL LRS 1.0 HC | 71mm | 268mm | 7.6µm | 19.5 × 12.2mm² |
| PL LRS 2.0 HC | 90mm | 269mm | 15.1µm | 38.7 × 24.2mm² |
| PL LRS 3.6 | 148mm | 239mm | 28µm | 71.7 × 44.8mm² |
| PL LRS 4.6 | 178mm | 279mm | 35µm | 89.6 × 56mm² |
| PL LRS 5.3 VIS | 161mm | 376mm | 40µm | 102.4 × 64mm² |
| PL LRS 8.3 | 375mm | 463mm | 63µm | 161.3 × 100.8mm² |
| PL LRS 9.9 | 493mm | 263mm | 75µm | 192 × 120mm² |
| PL LRS 11.7 | 575mm | 667mm | 90µm | 230.4 × 144mm² |
| PL LRS 17.2 | 884mm | 975mm | 130µm | 332.8 × 208mm² |
Working and mounting distances are nominal; consult the datasheet for tolerances under your configuration.
What is the LRS-MCx WQ?
A WQXGA DLP light engine for scrolling additive manufacturing — a DLP9000X/XUV 0.9″ DMD resolving 2560 × 1600 under the LUXBEAM® LB9500 controller. You integrate it into your own machine.
How much UV power does it deliver?
Up to 10 W at 460 and 405 nm, 9 W at 385 nm and 7.5 W at 365 nm, held to 99% uniformity after software correction.
Can I stack several engines?
Yes — the narrow footprint is designed for it. Modules stack on a linear stage in static or scrolling multihead configurations, with alignment features holding the stitched image pixel-precise.
What does integration involve?
LAMA™ Standard is included and its API works with any motion controller. Communication is industrial-grade Ethernet, and 10 G bandwidth supports high-speed pattern streaming.
Which lens should I choose?
It depends on your pixel pitch and build area — the lens table above lists working distance, mounting distance, pixel pitch and native image size for every PL LRS option.
