A plug-and-play solution for multihead scrolling configurations

Enlarging the build area with multihead scrolling

Expert static 3D print machine developers and manufacturers will find that the LRS-MCx motion stage opens up new business opportunities, as implementing scalable motion systems enables larger build areas and print volume scaling.

Flexible motion stage platform

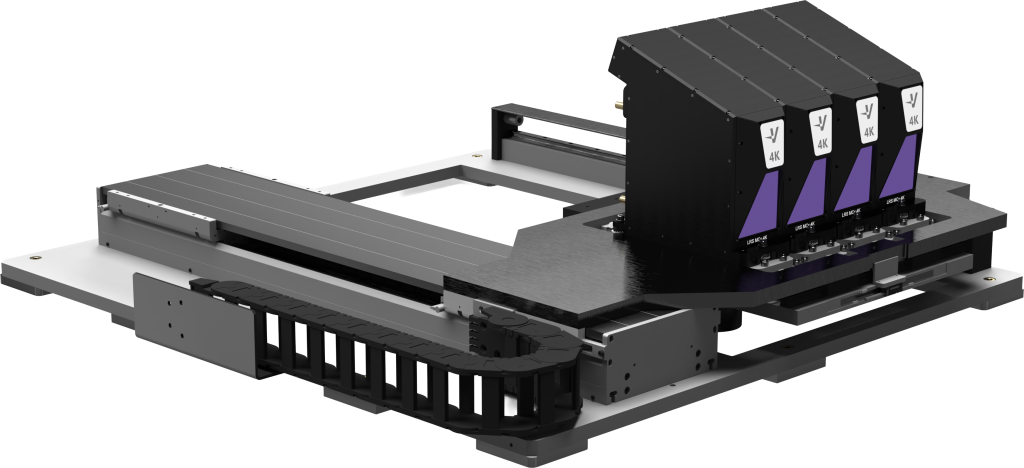

Designed for installation in bottom-up and top-down configurations, the plug-and-play motion stage rooms up to four LRS-MCx photoheads. A wide selection of projection lenses enables various configurations, allowing seamless stitching of native images with pixel pitch as low as 25 microns.

Multiple uses

The flexible platform of the motion stage is suitable for UV stereolithography and works equally well in polymer-based powder bed fusion installations.

Superb productivity illustrated

A simple calculation illustrates the system’s productivity. Four LRS-MCx-HD V2 light engines with PL LRS 4.6 lenses create a 380 mm wide image of 7,620 pixels horizontally. A 700 mm scroll range enables a 650 mm long image of 13,000 pixels vertically. A single setup with a 4-head subsystem is as productive as 128 static desktop machines at the same pixel pitch, depending on material sensitivity.

Configuration examples

Contact us for more details and other options.
